Servo supply issue
From Rsewiki
Back to Robobot_B
The 5V supply is OFF
The 5V servo supply may suddenly turn off. The issue is that when the servo stops, the extra energy is returned to the supply. The power supply enters shutdown mode when current flows in the reverse direction and can only be reset by a power cycle.

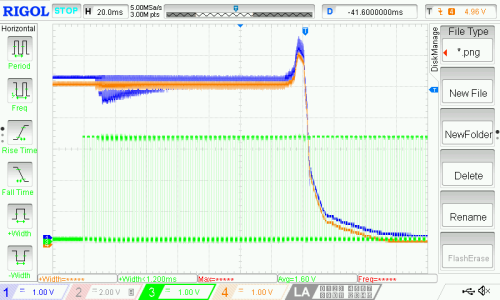

It looks like this:
The Orange and blue are the servo power (5V), and the green is the control pulse to the servo.
- The servo runs for about 130ms, then stops.
- When it stops, the supply reaches above 6V.
- After this, the 5V supply shut down.
