Robobot calibration
Back to Robobot
Sending commands to the Teensy board using MQTT

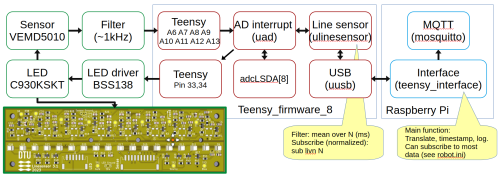

Line sensor
The line sensor blinks the LED illumination and subtracts the non-illuminated from the illuminated.
These (raw) values are then normalized relative to a calibrated expected white value.
The normalized value is between 0 (black - no reflection) and 1000 (calibrated white reflection).
Start calibration
Place the sensor at the expected distance over a white surface with the expected reflectance (i.e. white tape).
Send the command, e.g.:
licw 100 Using MQTT, publish: topic: robobot/cmd/T0/licw message: "100"
where 100 means average over 100 samples.
Once finished, save the values in the Teensy flash by:
eew Using MQTT, publish: topic: robobot/cmd/T0/eew message ""
Get normalized data
Subscribe to data from the Teensy by the command
sub livn 7 Or using MQTT, publish: topic: robobot/cmd/T0/sub message: "livn 7"
where 7 means update every 7 ms. This could be as low as 1, but the traffic load may give communication bottlenecks resulting in delay or lost messages. The communication limit is approximately 4000 messages per second (each below 64 characters).

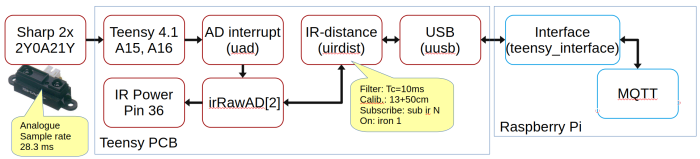

Distance sensor calibration
The distance sensor needs calibration.
The sensor is calibrated with two sensor values, 13 cm and 50 cm.

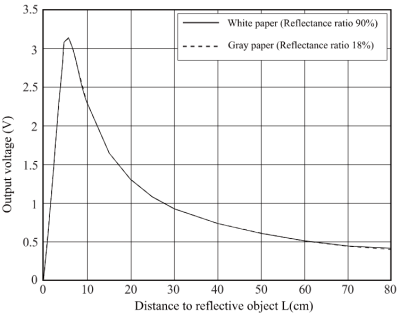

The datasheet states that the analogue voltage out of the sensor is something like:
It can be seen that distances below 5cm can give the same voltage as most other distances.
The easiest way is to have console access directly to the Teensy. Connect to the robot using, e.g., Putty to get two command lines on the Robot's Raspberry. Or a serial console if the Teensy is connected directly to a PC.
Sensor values 13 cm
Subscribe to sensor data and calibration values every 300ms:
Send this message to the Teensy
sub ir 300 Using MQTT this is: topic: robobot/cmd/T0/sub message: ir 300
Watch the message (either using cat or MQTT)
cat /dev/ttyACM0 Using MQTT, subscribe to topic: robobot/drive/T0/ir
Should get this
ir 0.124 0.137 15698 14219 15000 4600 15000 4100 1 ir 0.124 0.137 15660 14220 15000 4600 15000 4100 1 ir 0.124 0.137 15666 14207 15000 4600 15000 4100 1
or using MQTT
robobot/drive/T0/ir 1740853405.7074 0.124 0.137 15698 14219 15000 4600 15000 4100 1 robobot/drive/T0/ir 1740853406.0078 0.124 0.137 15660 14220 15000 4600 15000 4100 1 robobot/drive/T0/ir 1740853406.3075 0.124 0.137 15666 14207 15000 4600 15000 4100 1
Obstacles are here at 13 cm for both sensors. The first two values show the distance, and they are here close to 13 cm. The raw (filtered) values are approximately 15660 and 14210, respectively. This is relatively close to the already calibrated values of 15000.
The last value 1 shows that the sensor is on, if not, then send the on command:
iron 1 Using MQTT topic: robobot/cmd/T0/iron message: 1
Sensor values 50 cm
The 50cm values could be
ir 0.496 0.426 4633 4761 15000 4600 15000 4100 1 ir 0.500 0.426 4600 4770 15000 4600 15000 4100 1 ir 0.496 0.426 4628 4764 15000 4600 15000 4100 1 ir 0.494 0.426 4641 4762 15000 4600 15000 4100 1 ir 0.498 0.426 4616 4761 15000 4600 15000 4100 1 ir 0.496 0.427 4627 4759 15000 4600 15000 4100 1 ir 0.481 0.427 4741 4756 15000 4600 15000 4100 1
The value seems fine for sensor 1 (default side-mounted); it is a bit off for the other sensor.
Implement calibration
To implement the new calibration values, use (in this case).
- Help text is: irc A1 B1 A2 B2 V Set calibration values A=13cm value, B=50cm (sensor 1 and 2) V=1 in on.
irc 15660 4600 14210 4760 1 or MQTT, publish: topic: robobot/cmd/T0/irc message: "15660 4600 14210 4760 1"
Then save to the Teensy flash:
eew or using MQTT topic: robobot/cmd/T0/eew message ""
The values at 50cm now look like:
ir 0.501 0.501 4590 4756 15660 4600 14210 4760 1 ir 0.491 0.498 4669 4770 15660 4600 14210 4760 1 ir 0.498 0.501 4619 4754 15660 4600 14210 4760 1 ir 0.499 0.499 4610 4765 15660 4600 14210 4760 1 ir 0.493 0.501 4654 4755 15660 4600 14210 4760 1
After this calibration, the actual values should be within 3-5 cm in the 10cm to 50cm range.
Reflections
If the sensor looks into a reflecting surface, then this may disturb the reading.
Back to normal
The teensy_interface was terminated, and further, the CRC was disabled.
Turn on CRC:
echo "i 0" >/dev/ttyACM0
Restart the teensy_interface, or maybe better, reboot the Raspberry:
sudo reboot now
alternatively, restart
cd ~/svn/robobot/teensy_interface/build ./teensy_interface -l
But the restarted process will be terminated sometime after you terminate the command line access.
Calibrate odometry
Robot wheel configuration requires:
- Wheel radius (around 7.5cm)
- Gear ratio (19:1)
- Encoder ticks per revolution (92)
- Distance between wheels (around 23cm)
These values are sent to the teensy_firmware_8 as confw rl rr gear TPR wb, e.g.:
confw 0.0750 0.0750 19 92 0.234 or using MQTT topic: robobot/cmd/T0/confw message: "0.0750 0.0750 19 92 0.234"
The values can be queried with a configi command, that returns, e.g.:
conf 0.0750 0.0750 19.000 92 0.2340 0.0020 0 or, if subscribed from MQTT topic: robobot/drive/T0/conf message: 0.0750 0.0750 19.000 92 0.2340 0.0020 0
The last 0.0020 is the system sample time, here 2ms. The last 0 is for motortest only.
The simple method is:
- Order the robot to drive 1m, check how long the robot think it has driven, e.g. 1.02m, then compare with reality, and adjust the wheel radius as relevant.
- Order the robot to turn e.g. 180 degrees, compare with reality and adjust the distance between driving wheels as needed.
